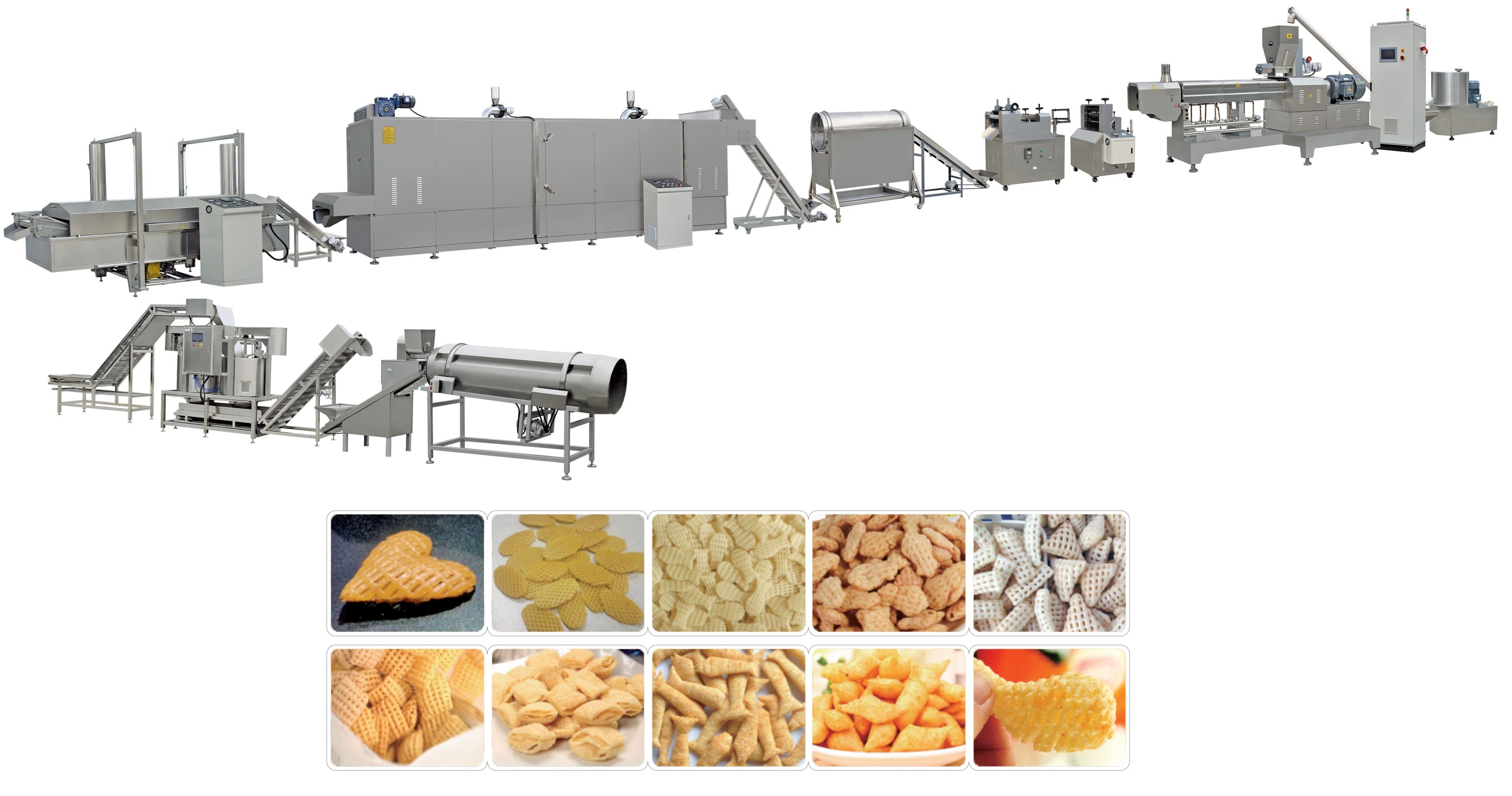

3D Snack Pellet Puffed Food Production Line

3D Snack Pellet Puffed Food Production Line consists of:

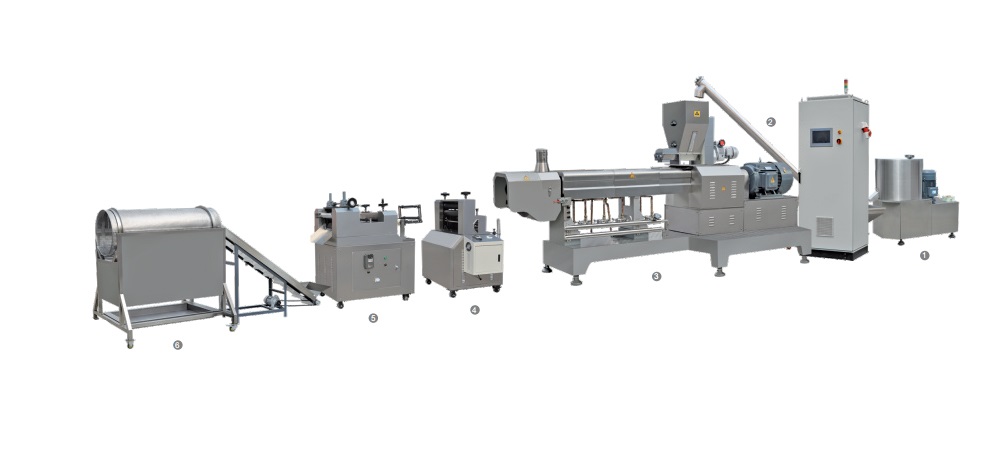

1. Mixer
2. Screw elevator
3. Twin screw host/Double screw extractor
4. Embossing machine/Pattern presser
5. Compound shaper
6. Separating machine
7. Hoist/Hoister

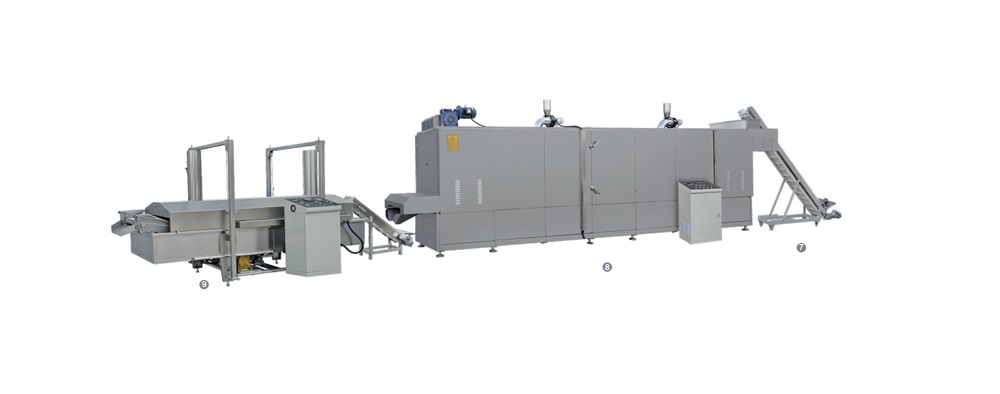

8. Oven/5-layer layer
9. Continuous fryer

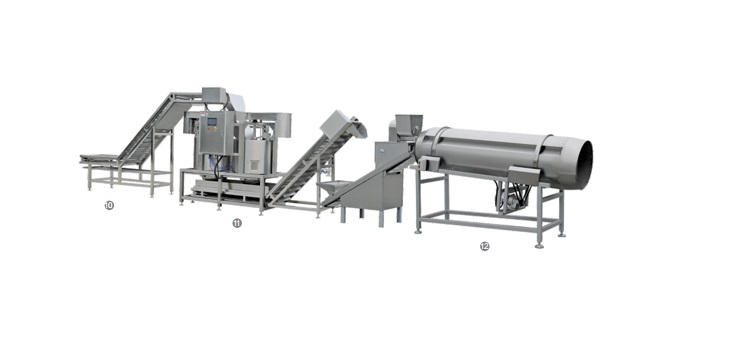

10. Hoist/Hoister
11. Oil slinger/De oil machine
12. Automatic flavoring line

Contact Now

Product Details

Cooking, lowering, and so on strategies to offer spiral, tube, onion ring, waved chips, and so forth snack pellets. consisting of crisp peas, shells, screws, rectangular tubes, spherical tubes, and waves. also can equip with a sample urgent tool and compound device to offer bugles, net crispy, pani puri, and lots of other 3-d snack pellets. then via way of drying, frying, and flavoring, the snack pellet may be made to be crispy, and vivid immediately-eat after times extrusion of puffed food.

The production line makes use of wheat flour, corn flour, corn starch, tapioca starch, and potato starch as uncooked materials.

This line is characterized by using a particular technique, rational configuration, high automation, and sturdy overall performance. it is able to cease steaming, extrusion, and shaping in an unmarried step without a boiler. and mixtures of the unit screw and particular manipulation of processing, attain higher quality and numerous merchandise with a greater choice of raw fabric.

3D Snack Pellet Puffed Food Production Line

Raw materials of 3D Snack Pellet Puffed Food Production Line:

wheat flour, potato starch, potato flour, corn starch, cassava starch, etc.

Process Flow of 3D Snack Pellet Puffed Food Production Line:

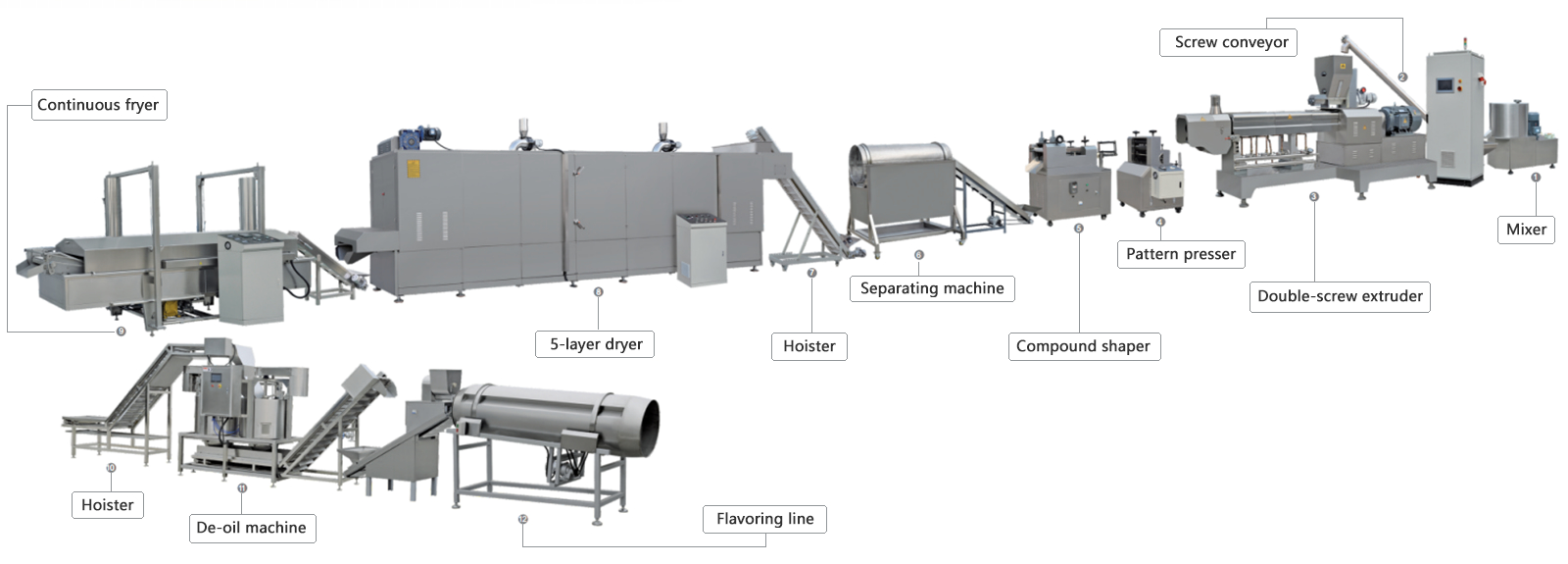

Mixer--Extruder--Pulling Cutter-Compound Shaper--Roller Drum--Vibration Cooler--Hoister--Dryer--Fryer--Flavoring

Specification of 3D Snack Pellet Puffed Food Production Line:

Model	HX65	HX70	HX85
Installed Power	75kw	135kw	240kw
Power Consumption	55kw	95kw	180kw
Capacity	120-200kg/h	200-300kg/h	400-500kg/h
Dimension	282.62.4m	363.53.0m	383.83.5m

Final Products of 3D Snack Pellet Puffed Food Production Line:

3D Snack Pellet Puffed Food Production Line

Packaging and shipping of 3D Snack Pellet Puffed Food Production Line:

We use the waterproof film multi-layer winding machine and then use wooden boxes for packaging, which can effectively prevent moisture and collision during transportation; In transportation, we use sea transportation, of course, you can also choose other transportation methods.

After purchase, we will ship it to you as soon as possible. The exact arrival time will vary according to the distance. You can consult online customer service or leave us a message, and we will reply to you in time.
