Large-scale Aquatic Feed Production Line

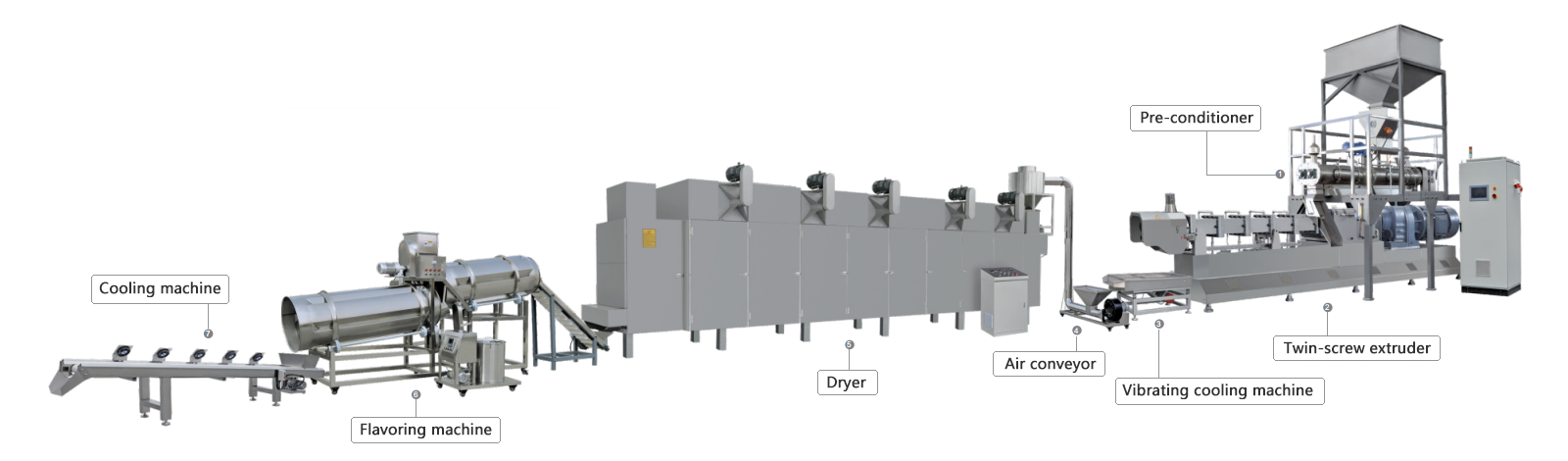

Large-scale Aquatic Feed Production Line consists of:
1. Modulator/Pre conditioner
2. Twin screw extruder
3. Vibrating cooling machine
4. Air blower
5. Oven/Dryer
6. Automatic flavoring machine
7. Cooling machine
Large-scale Aquatic Feed Production Line can produce a premium quality special koi food, goldfish food, tropical fish food, dog food, cat food, as well as dog and monkey food. They all are sold at home and abroad and win high praise and favorably commented from customers.
Features of Large-scale Aquatic Feed Production Line:
1). This production line adopts the steam method with high-efficiency driving, stability, and low noise.
2). It is also with Internationally advanced steam fittings and an imported pressure reduction valve.
3). Different types, flexible configurations, a wide range of raw materials, etc.
4). Easy operation, without leak of powder dust, sanitation, saving energy, and easy to add all kinds of raw materials and nutriment.
Raw materials of Large-scale Aquatic Feed Production Line:
adopts corn flour, fish meal, bone meal, meat meal, soya bean powder, etc.
Final products of Large-scale Aquatic Feed Production Line:
Pet food, like fish, bird, dog, cat, etc. With different shapes and tastes by changing the dies, and formulations.

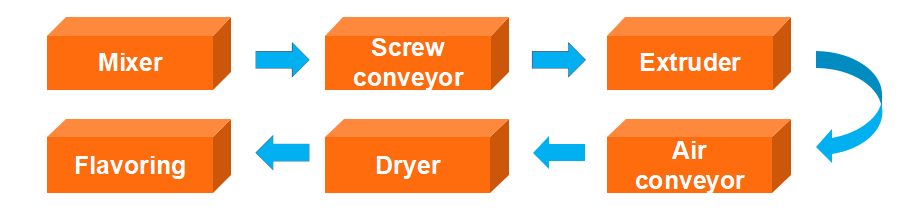

Work Flow of Large-scale Aquatic Feed Production Line:
Specification of Large-scale Aquatic Feed Production Line:
Model | HX85 | HX95 | HX130 |
Installed Power | 110kw | 165kw | 280kw |
Power Consumption | 55kw | 90kw | 132kw |
Capacity | 500-800kg/h | 1500-2000kg/h | 2000-3000kg/h |
Dimension | 30 × 2.0 × 3.5m | 40 × 3.5 × 4.5m | 45 × 4.5 × 6.0m |
Samples of Large-scale Aquatic Feed Production Line:
Packaging and shipping of Large-scale Aquatic Feed Production Line:
We use the waterproof film multi-layer winding machine and then use wooden boxes for packaging, which can effectively prevent moisture and collision during transportation; In transportation, we use sea transportation, of course, you can also choose other transportation methods.
After purchase, we will ship it to you as soon as possible. The exact arrival time will vary according to the distance. You can consult online customer service or leave us a message, and we will reply to you in time.
Model | HX85 | HX95 | HX130 |
Installed Power | 110kw | 165kw | 280kw |
Power Consumption | 55kw | 90kw | 132kw |
Capacity | 500-800kg/h | 1500-2000kg/h | 2000-3000kg/h |
Dimension | 30 × 2.0 × 3.5m | 40 × 3.5 × 4.5m | 45 × 4.5 × 6.0m |
