Inflated Leisure Food Processing Line

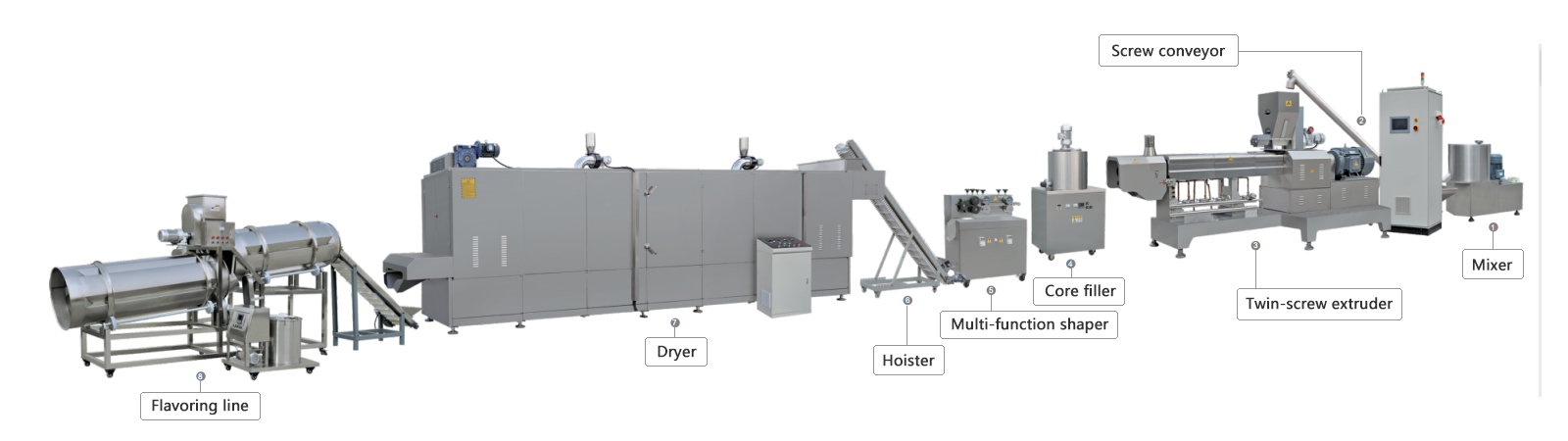

Inflated Leisure Food Processing Line consists of:

1. Mixer
2. Screw the elevator
3. Twin screw host/Double screw extractor
4. Embossing machine/Pattern presser
5. Compound shaper
6. Separating machine
7. Hoist/Hoister
8. Oven/5-layer layer
9. Continuous fryer
10. Hoist/Hoister
11. Oil slinger/De oil machine
12. Automatic flavoring line


  Contact Now
Product Details

Cooking, reducing, and so forth techniques to provide spiral, tube, onion ring, waved chips, and so forth snack pellets. which includes crisp peas, shells, screws, square tubes, round tubes, and waves. can also equip with a sample urgent tool and compound device to provide bugles, net crispy, pani puri, and masses of other 3-d snack pellets. then thru manner of drying, frying, and flavoring, the snack pellet can be made to be crispy, extremely good instantaneous-eat two instances extrusion puffed meals.


The processing line makes use of wheat flour, corn flour, corn starch, tapioca starch, and potato starch as uncooked materials.


This machine is characterized by using the useful resource of a selected approach, rational configuration, immoderate automation, and robust everyday overall performance. it can give up steaming, extrusion, and shaping in a single step without a boiler. and mixtures of the unit screw and precise management of processing, advantage higher notable and numerous products with extra determined on for uncooked cloth.



Inflated Leisure Food Processing Line




Raw materials of Inflated Leisure Food Processing Line:

wheat flour, potato starch, potato flour, corn starch, cassava starch, etc.

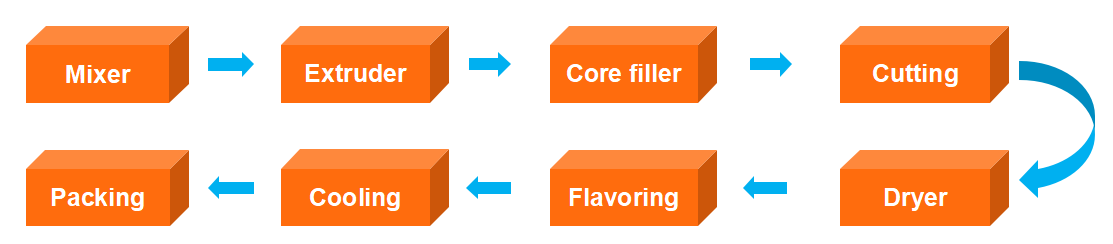

Work Flow of Inflated Leisure Food Processing Line:

Inflated Leisure Food Processing Line



Specification of Inflated Leisure Food Processing Line:

Model

HX65

HX70

HX85

Installed Power

75kw

135kw

240kw

Power Consumption

55kw

95kw

180kw

Capacity

120-200kg/h

200-300kg/h

400-500kg/h

Dimension

28*2.6*2.4m

36*3.5*3.0m

38*3.8*3.5m



Final Products of Inflated Leisure Food Processing Line:

Inflated Leisure Food Processing Line



Packaging and shipping of Inflated Leisure Food Processing Line:

We use the waterproof film multi-layer winding machine and then use wooden boxes for packaging, which can effectively prevent moisture and collision during transportation; In transportation, we use sea transportation, of course, you can also choose other transportation methods.

After purchase, we will ship it to you as soon as possible. The exact arrival time will vary according to the distance. You can consult online customer service or leave us a message, and we will reply to you in time.


Inflated Leisure Food Processing Line
