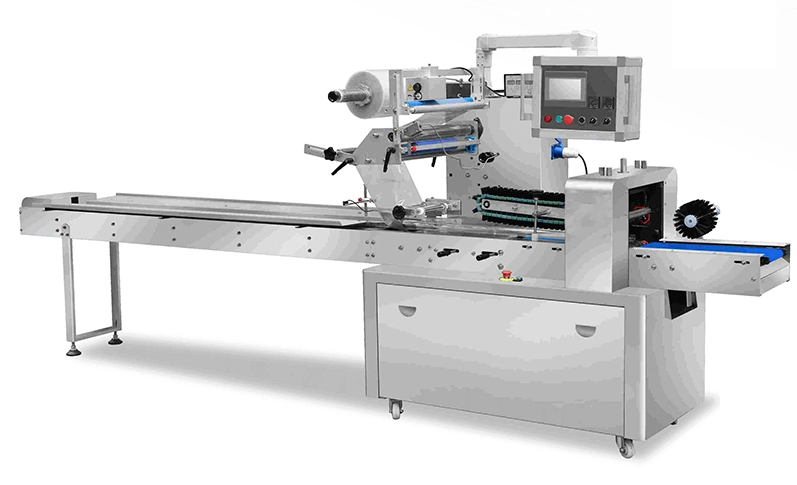

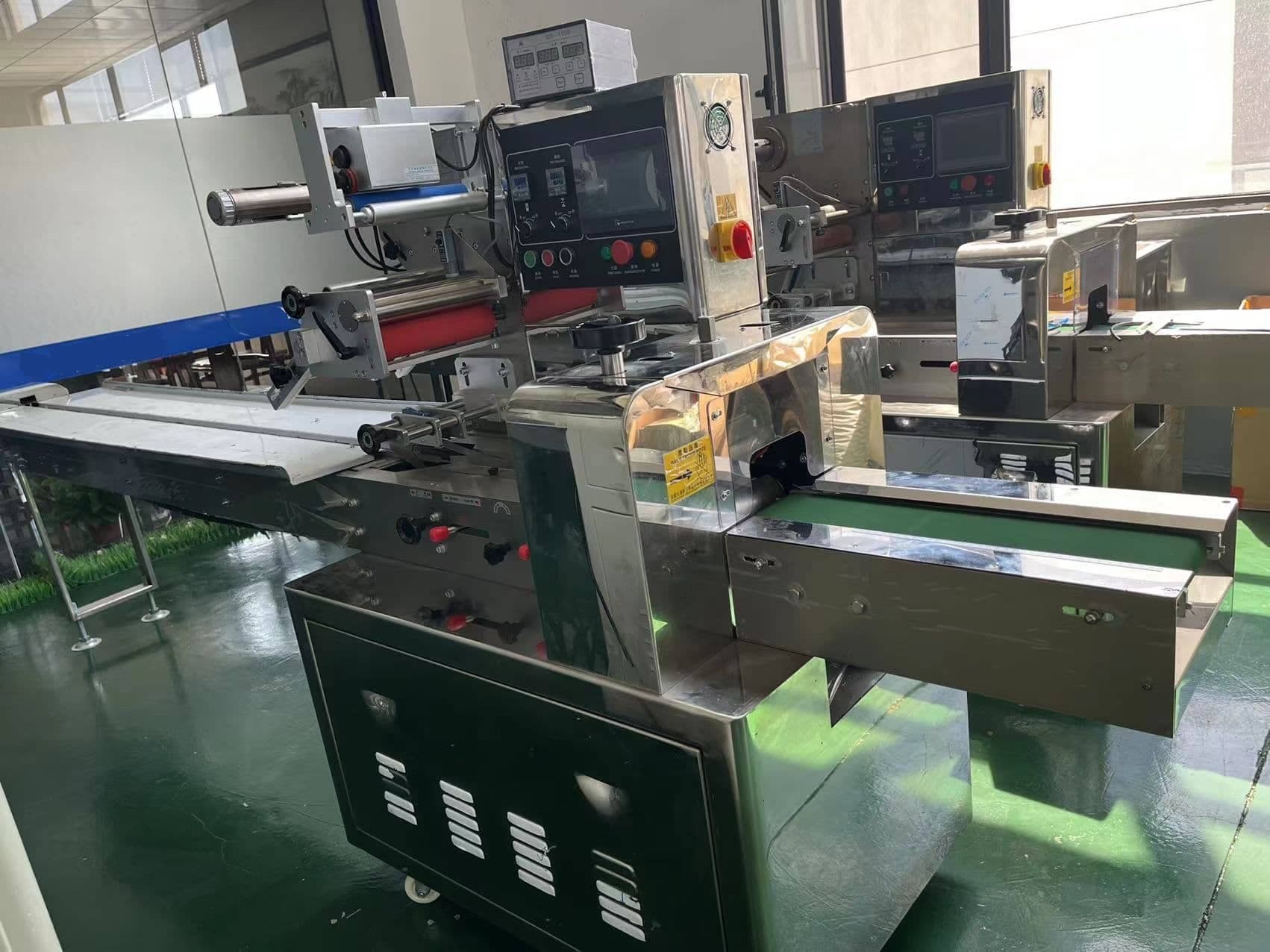

Automatic Horizontal Flow Packing Machine

Flow packing is a time and cost-effective packing method. The product moves horizontally along a machine, then wrapped in film and sealed at either end by horizontal flow wrapping machines.

Horizontal flow packing locks products in place and restricts movement to protect products. Combining flow packing with gas flushing processes removes oxygen from the bag as it’s packed, keeping food still fresh until they reach the consumer.

Flow packing bags can be rectangular or square, from 15mm to 200mm wide and from 25mm to 450mm in length. depending on your needs. it is also called horizontal bagging, pillow-pouch wrapping, fin-seal wrapping, and crimp-seal wrapping.

Bags material is created from a robust plastic film (for example, PET and PE)and has different colors, printed, clear, or a single color. – including opaque for full visibility over products or fully printed brand designs.

Benefits of Automatic Horizontal Flow Packing Machine:

1. Cost-effective for Packing promotional items or samples.

2. Air-tight for neat and space-saving packages, minimizing material waste.

3. Ideal chance for brand visibility products.

4. Typically weigh less than an alternative packing bag.

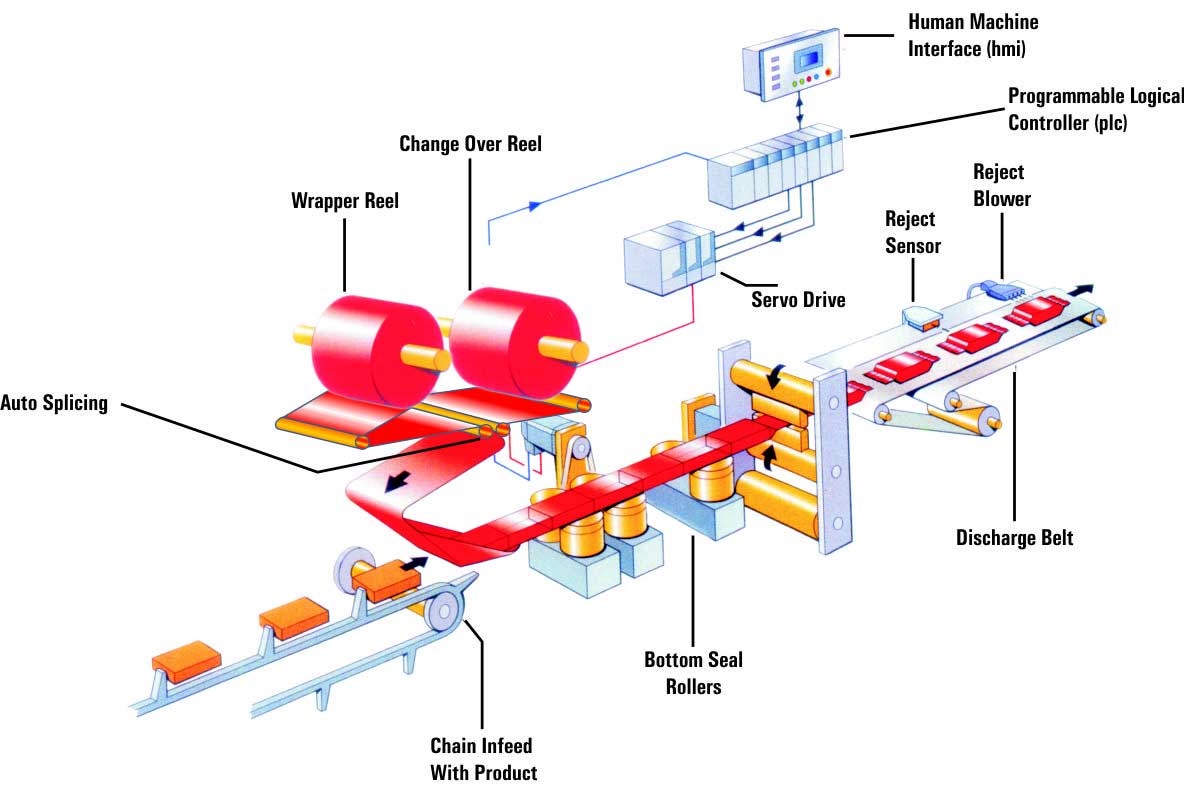

Work process of Automatic Horizontal Flow Packing Machine:

Step 1: Only place the products on a conveyor belt and transport them to the forming zone by flow packing machine.

Step 2: Package the product with automatically fed sealing film and line up the sealing film edges. The aligned edges are sealed by applying a degree of heat or pressure.

Step 3: A cutter is used to open two consecutive sealed products so that they are separated.

Step 4: We then offload the finished flow-wrapped package from the flow-packing machine to the storage area.

Application of Automatic Horizontal Flow Packing Machine:

Any solid item product that can be pushed along a horizontal belt and products need to be put into a bag that can ultimately be pushed. are suitable for flow packing. for example A chocolate bar, a pack of biscuits, a pack of tissues, a scratch card, etc.

Specifications of Automatic Horizontal Flow Packing Machine:

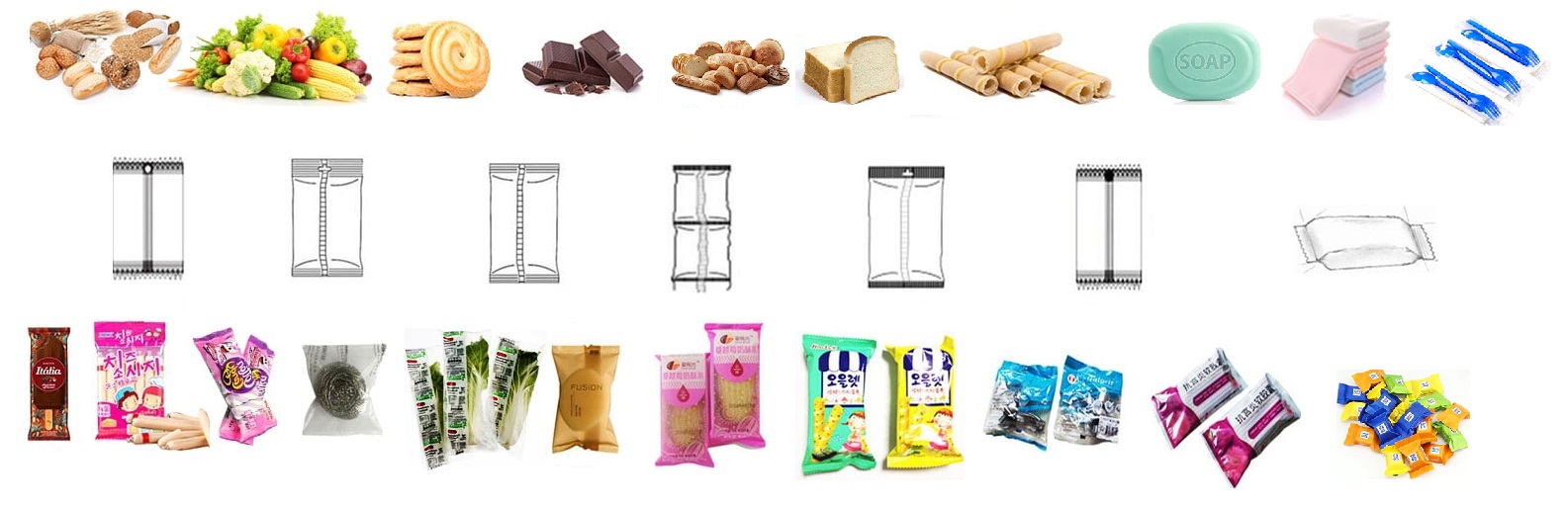

Bag style of Automatic Horizontal Flow Packing Machine:

Packaging and shipping of Automatic Horizontal Flow Packing Machine:

We use a waterproof film multi-layer winding machine and then use wooden boxes for packaging, which can effectively prevent moisture and collision during transportation.

In transportation, we use sea transportation, of course, you can also choose other transportation methods.

After purchase, we will ship it to you as soon as possible. The exact arrival time will vary according to the distance. You can consult online customer service or leave us a message, and we will reply to you in time.
