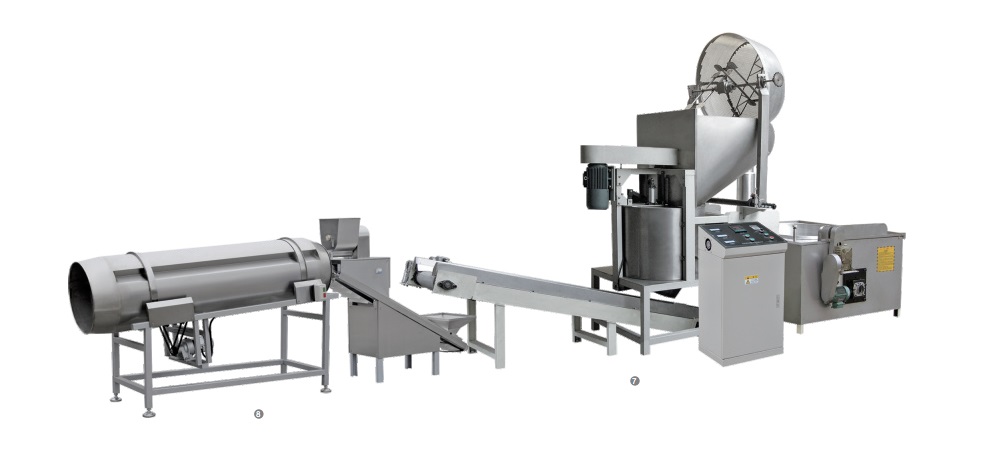

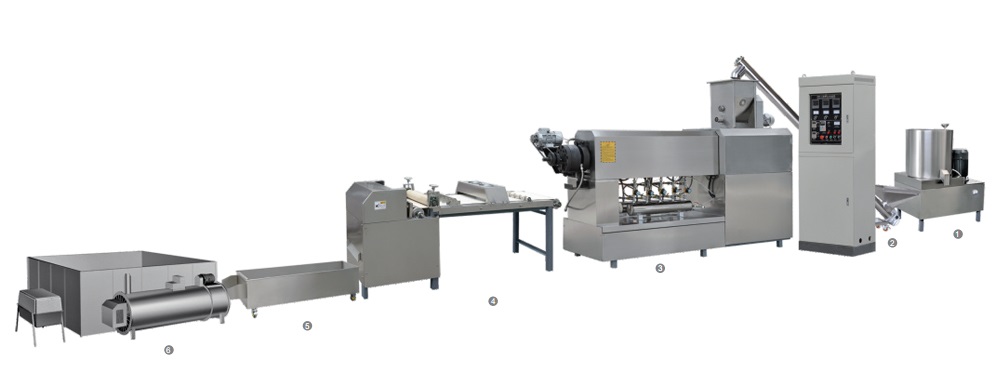

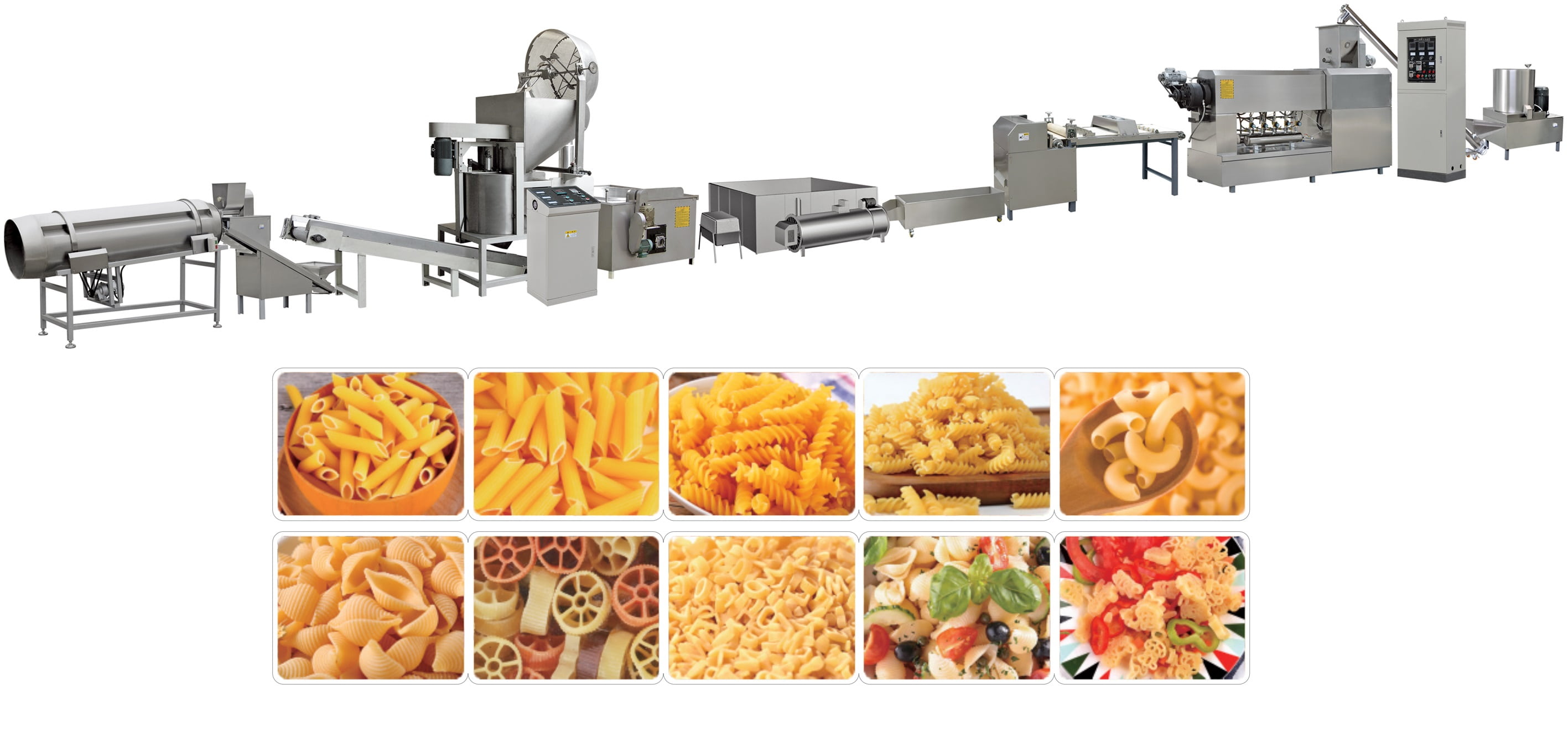

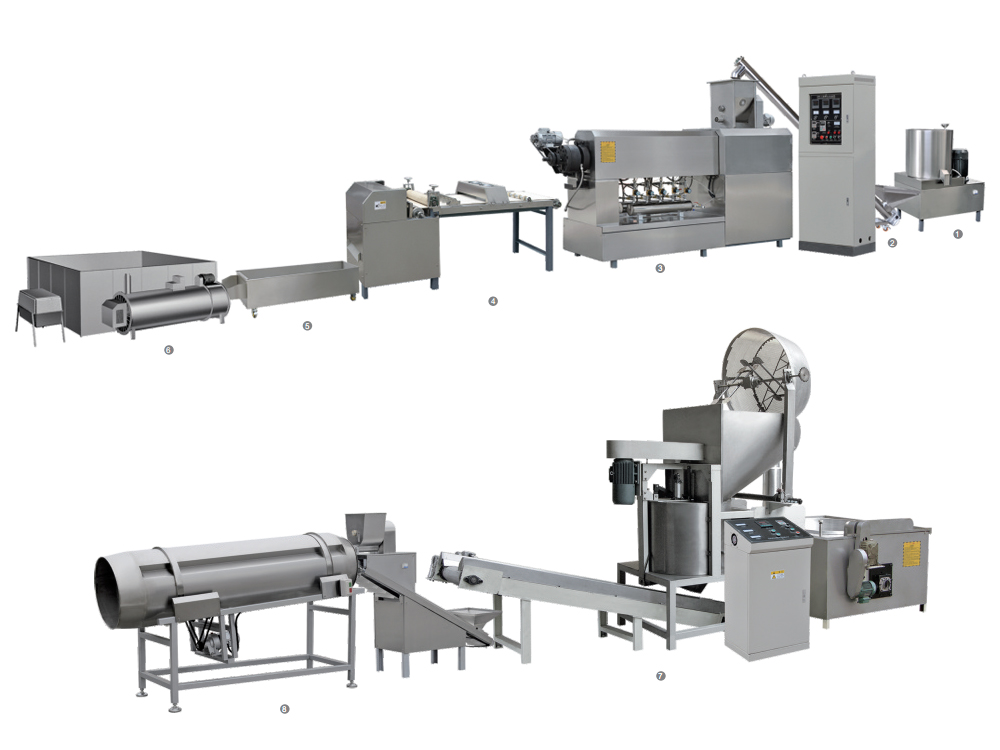

Spiral Macaroni Fried Food Production Line

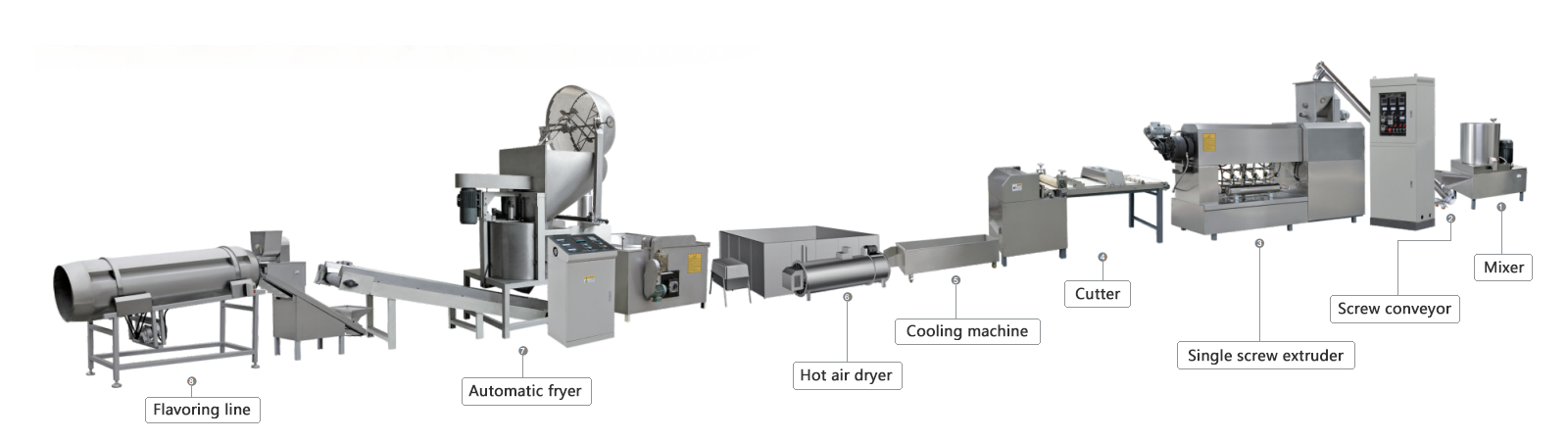

Spiral Macaroni Fried Food Production Line consists of:
1. Mixer
2. Screw conveyor
3. Single screw extruder
4. Cutter
5. Cooling machine
6. Hot air dryer
7. Automatic fryer
8. Flavoring line
Spiral Macaroni Fried Food production line adopts hard wheat flour or corn starch as the main material to produce a variety of second-extruded food in different shapes which are popular in the market, such as crispy pea, shell, screw, square tube, round tube, wave, etc. The products look glittering, translucent smooth, and beautiful and taste delicious after cooking.
Features of Spiral Macaroni Fried Food Production Line:
1). The production line, with perfect technology, unique technics, compact structure novel design rational configuration, and stable performance, is developed on the base of like products and requirements in the world market.
2). It realizes high automation, and convenient operation, and can finish ripening, extruding, and shaping without a boiler.
3). Low energy and small floor space, that assures all working procedures from The investment for this line is only one-tenth of that large size equipment, especially suitable to small-size or self-owned enterprises.
4). The corrugated instant noodle produced by this line is tenacious, smooth and transparent, and very easy to be saturated by water.
Raw materials of Spiral Macaroni Fried Food Production Line:
Hard wheat flour, corn starch, etc.

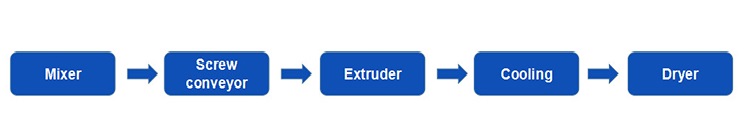

Work Flow of Spiral Macaroni Fried Food Production Line:
Specification of Spiral Macaroni Fried Food Production Line:
Model | HX80 | HX100 |
Installed Power | 70kw | 100kw |
Power Consumption | 50kw | 70kw |
Capacity | 80kg/h | 100kg/h |
Dimension | 19 × 2.0 × 2.2m | 27 × 2.0 × 2.2m |
Samples of Spiral Macaroni Fried Food Production Line:
Packaging and shipping of Spiral Macaroni Fried Food Production Line:
We use the waterproof film multi-layer winding machine and then use wooden boxes for packaging, which can effectively prevent moisture and collision during transportation; In transportation, we use sea transportation, of course, you can also choose other transportation methods.
After purchase, we will ship it to you as soon as possible. The exact arrival time will vary according to the distance. You can consult online customer service or leave us a message, and we will reply to you in time.
Model | HX80 | HX100 |
Installed Power | 70kw | 100kw |
Power Consumption | 50kw | 70kw |
Capacity | 80kg/h | 100kg/h |
Dimension | 19 × 2.0 × 2.2m | 27 × 2.0 × 2.2m |
