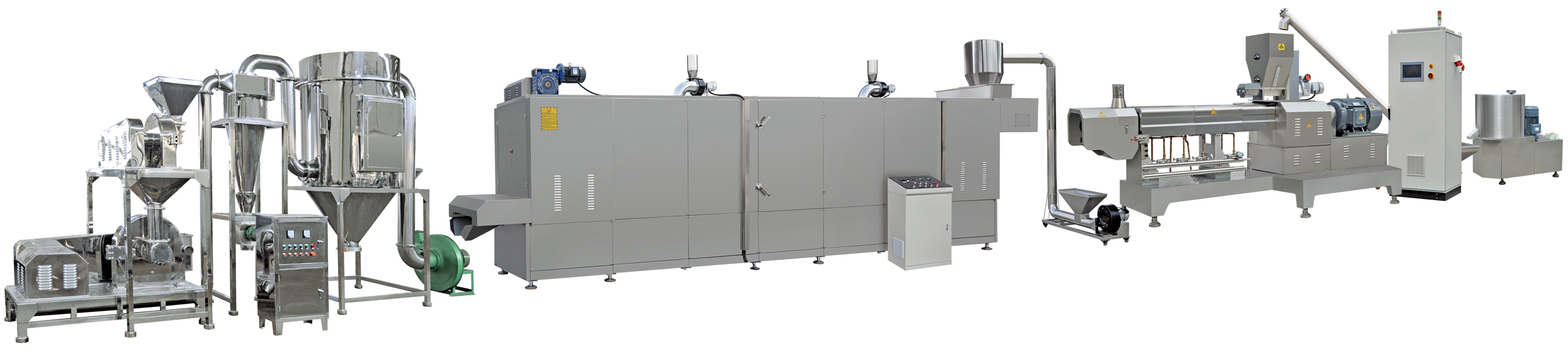

Pregelatinization Modified Starch Powder Production Line

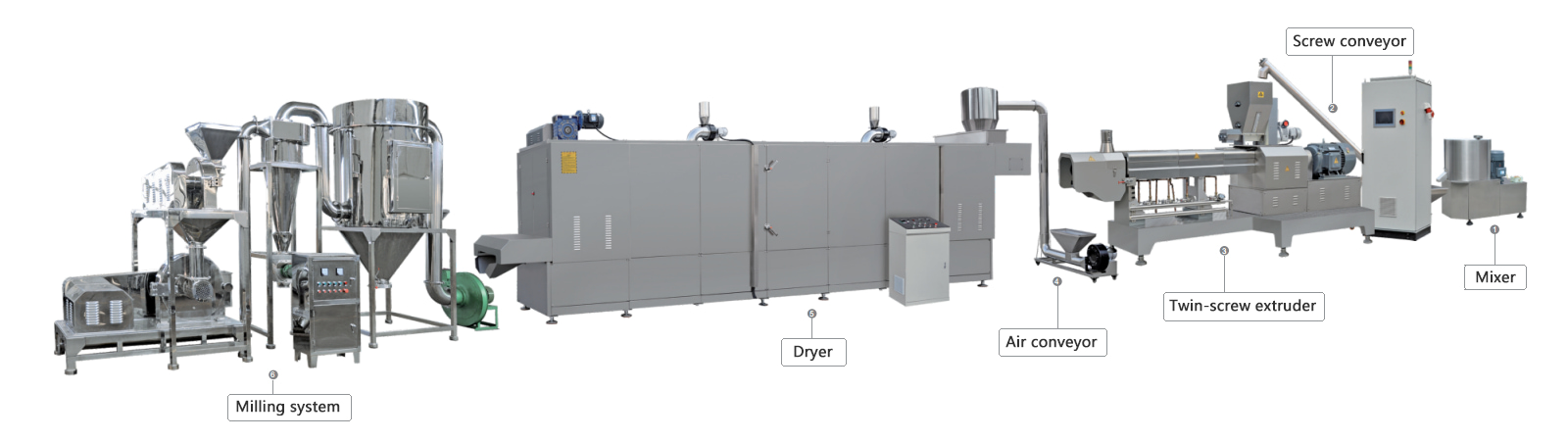

Pregelatinization Modified Starch Powder Production Line consists of:

1. Mixer
2. Screw elevator

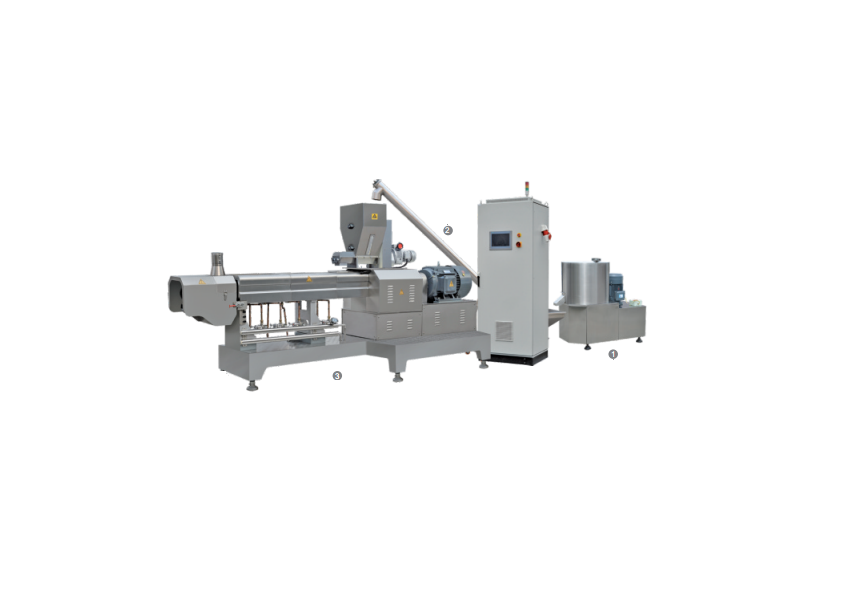

3. Twin screw extruder
4. Air blower

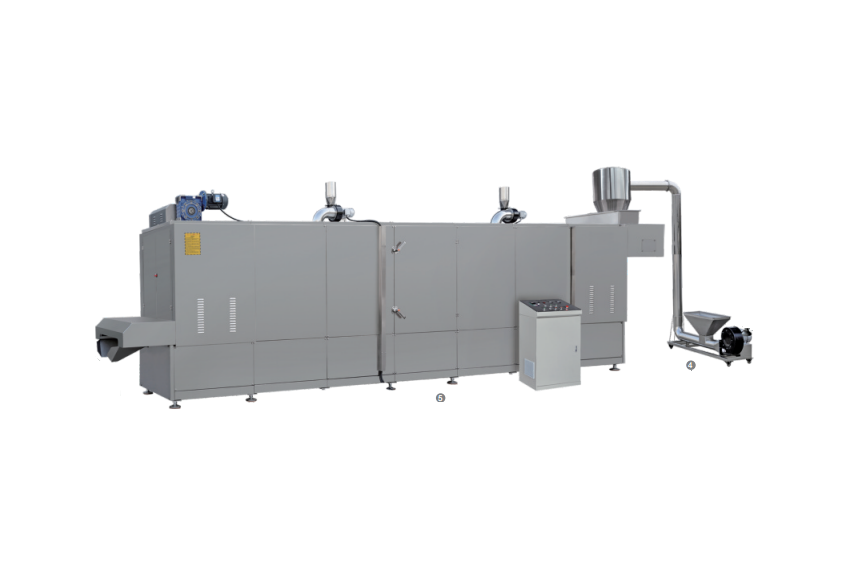

5. Oven/Dryer

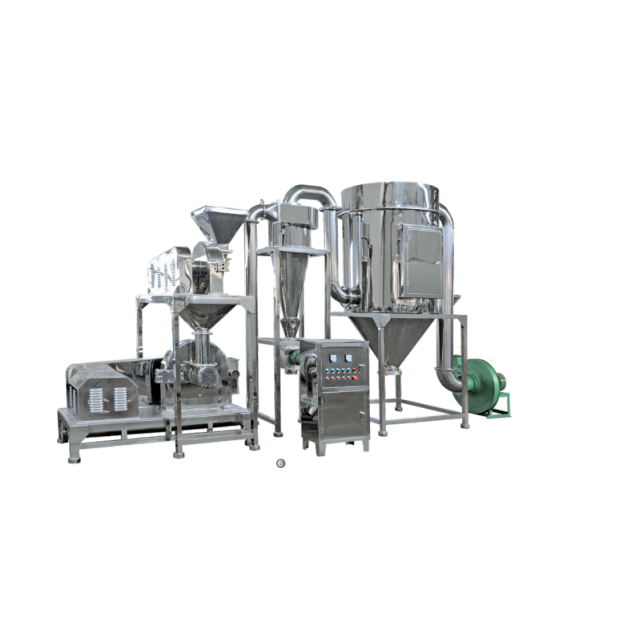

6. Milling system


  Contact Now
Product Details

Pregelatinization Modified Starch Powder Production Line is especially for corn powder, millet, rice powder, wheat flour, soya meal, lotus root powder, dates powder, sesame, and so forth extruding and inflating.


Thru extruding, inflating, drying, crushing, and mixing, it can produce many types of nutrition powder, including infant rice powder, sesame paste, beans powder, and so forth.


Double-screw food extruders can prepare dinner materials with excessive stress and high temperature. but it does not spoil the nutrients of the natural cereals.


Pregelatinization Modified Starch Powder Production Line


Features of Pregelatinization Modified Starch Powder Production Line:

1). Baby meals /modified starch production line should end the approaches robotically from the feeding to the quit. it has functions of clean operation, without leak of powder dirt, sanitation, saving strength, and clean to feature all varieties of uncooked substances and nutriment.

2). The toddler food /modified starch production line could make changed starch, denatured starch, pre gel starch by means of converting exceptionally designed barrels and screws of a double screw extruder.

3). Infant food /changed starch is broadly used inside the fabric, meals procedure, oil drilling, paper, construction industries, and many others.



Uncooked substances of Pregelatinization Modified Starch Powder Production Line:

Rice, corn, beans, all kinds of grains, and many others. additionally may be mixed with corn flour, wheat flour, soya bean meal, meat meal, bone meal, vegetable fiber, and many others.

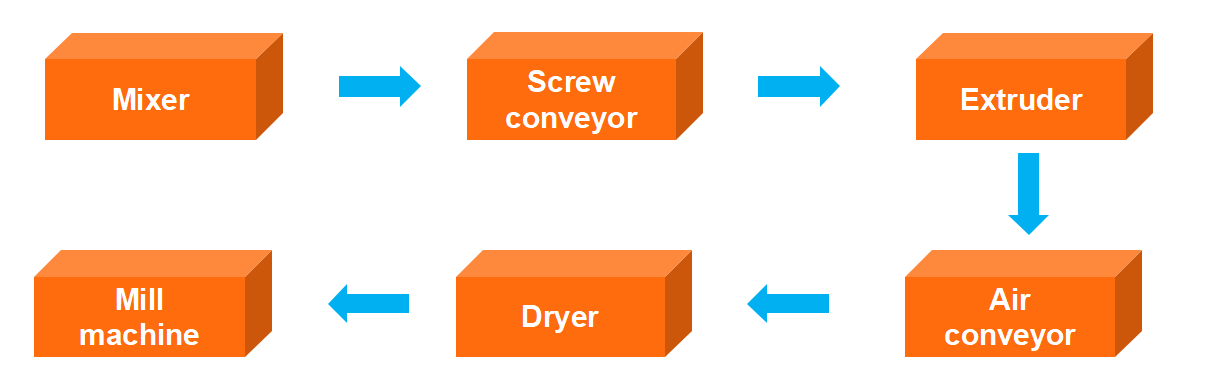

Process of Pregelatinization Modified Starch Powder Production Line:

Pregelatinization Modified Starch Powder Production Line




Final Products of Pregelatinization Modified Starch Powder Production Line:

Pregelatinization Modified Starch Powder Production Line




Technical Parameters of Pregelatinization Modified Starch Powder Production Line:

Model

HX65

HX70

HX85

Installed Power

77kw

108kw

150kw

Power Consumption

50kw

75kw

100kw

Capacity

100-150kg/h

200-260kg/h

400-500kg/h

Dimension

19*1.3*2.2m

21*1.3*2.2m

30*1.3*2.2m




Packaging and shipping of Pregelatinization Modified Starch Powder Production Line:

We use the waterproof film multi-layer winding machine and then use wooden boxes for packaging, which can effectively prevent moisture and collision during transportation; In transportation, we use sea transportation, of course, you can also choose other transportation methods.

After purchase, we will ship it to you as soon as possible. The exact arrival time will vary according to the distance. You can consult online customer service or leave us a message, and we will reply to you in time.
