Puffed Snacks Food Packaging Machine

Puffed Snacks Food Packaging Machine can be applicated in all kinds of grain material, sheet material, strip material and abnormity material, such as candy, melon seeds, chips, peanut, nutlet, preserved fruit, jelly, biscuit, confect, camphorball, currant, almond, chocolate, filbert, corn, Potato Crisps, pet foodstuff, dilatant foodstuff, hardware, frozen nuggets, onion rings, french fries and plastic etc.  they can be weighed by the ration.


Product Name: Puffed Snacks Food Packaging Machine

Max. bag width: 200-350mm

Packing speed: 30-60 Bag/Min

Power specification: 3.0/3.5/4.0KW, 220V,50/60Hz

Delivery Time:35 Working Days

Mode of transport: Shipping by sea

  Contact Now
Product Details

Features of Puffed Snacks Food Packaging Machine:

1. PLC computer control system, Chinese/English touch screen operating system, clearly displaying the working status and operation instructions.

2. High-precision servo film transport system, the film is transported smoothly, and with the photoelectric automatic positioning and tracking system, very high positioning accuracy.

3. Intelligent digital temperature control system, stable temperature difference control, equipped with tooth sealer to ensure firm sealing.

4. Automatic fault alarm display function, such as low temperature, no packaging film, no ribbon, no material, servo failure, no color mark signal.

5. Match with the whole packaging process of measuring, feeding, filling and bag making, date printing, and finished product output when matched with a measuring device.

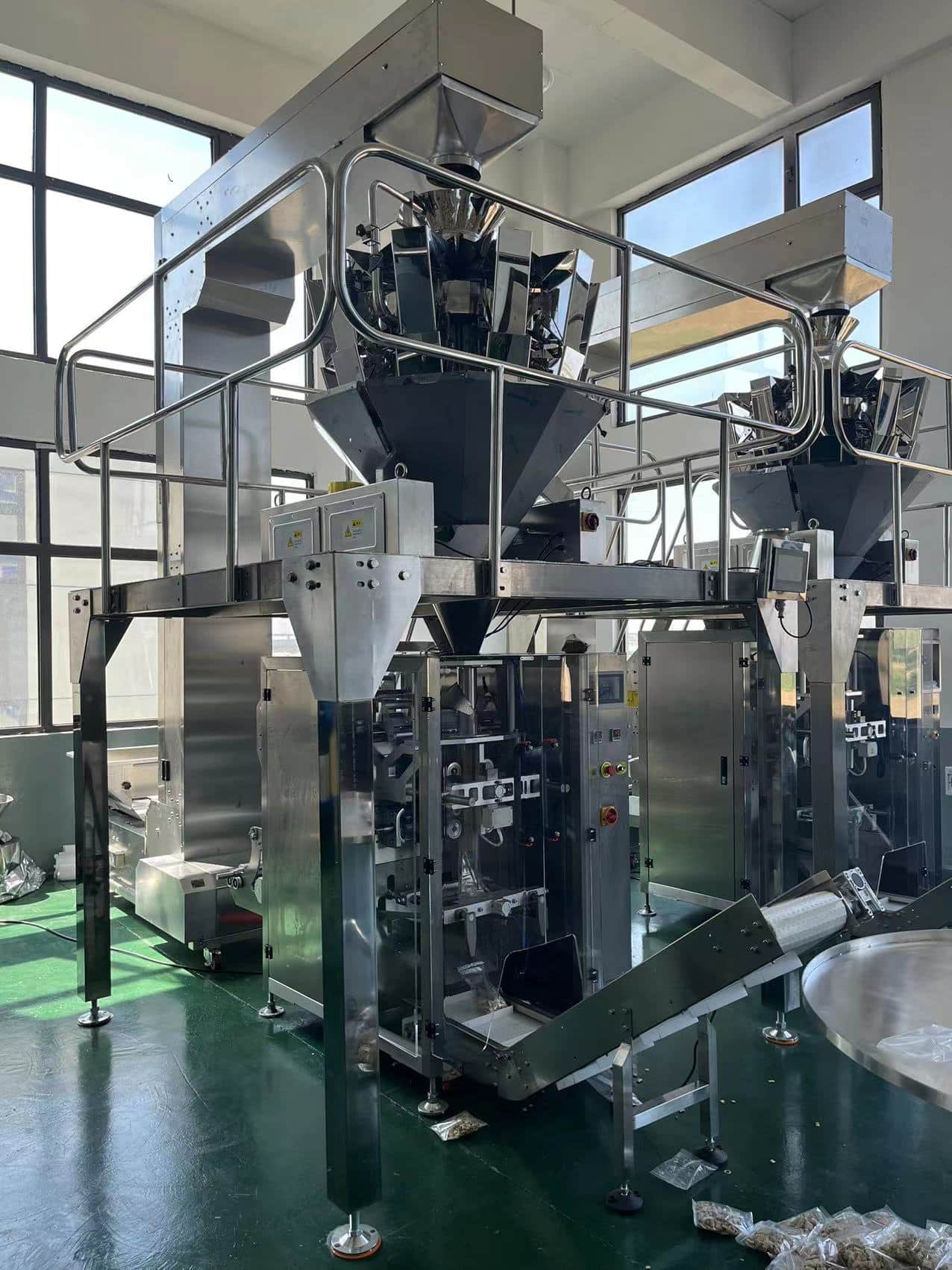

System Composition of Puffed Snacks Food Packaging Machine:

1. Vertical Form Fill Seal packing machine

2. Multihead weigher

3. Bucket conveyor

4. Working platform

5. Finished bag conveyor


Puffed Snacks Food Packaging Machine




Application of Puffed Snacks Food Packaging Machine

Such as snacks, chips, namkee, popcorn, fryums, pasta, Puffed Snacks, biscuits, candies, kurkure, dry fruits, soya chunk etc.

Puffed Snacks Food Packaging Machine



Specification of Puffed Snacks Food Packaging Machine:

ModelHX-420HX-520HX-720
Max. bag width200mm250mm350mm
Bag length50-300mm80-350mm100-450mm
Film thickness0.04-0.08mm0.04-0.08mm0.05-0.1 mm
Packing speed30-60bag/min30-60bag/min10-30bag/min
Accuracy<±1-2<±1-2<±2-3
Power specification3.0kw/220V,50/60Hz3.5kw/220V,50/60Hz4.0kw/220V,50/60Hz
Air consumption0.6m2/min0.6m2/min0.7m2/min
Overall dimension3500x2000x3700mm3500x2000x3900mm3500x2000x4100mm
Gross weight700Kg750Kg800Kg



Packaging and shipping of Puffed Snacks Food Packaging Machine:

We use waterproof film multi-layer winding machine and then use wooden boxes for packaging, which can effectively prevent moisture and collision during transportation;

In transportation, we use sea transportation, of course, you can also choose other transportation methods.

After purchase, we will ship it to you as soon as possible. The exact arrival time will vary according to the distance. You can consult online customer service or leave us a message, and we will reply to you in time.

Puffed Snacks Food Packaging Machine
