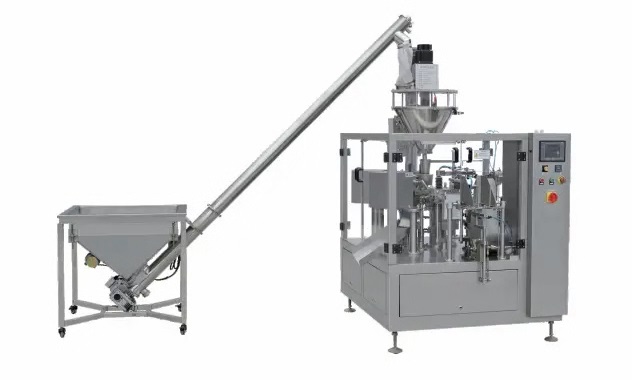

Automatic Powder Premade Pouch Rotary Packing Machine

Premade Pouch Rotary Packing Machine is an automatic packing machine that automatic feeding & pick up pouches, coding, open the pouches, fills products into the pouches, then seals & output.


Packing speed: 40-60 bags/min

Bag size: 100-300mm(Length), 100-200mm(Width)

Packing weight: 50-2000g

Power: 5kw

Pouch type: Pre-made Bag, Stand-up bag, Flat bag, Zipper Bag

Delivery Time: 35 working days.

Payment Term: T/T, L/C, PayPal, Western Union

Packing: Wooden case


  Contact Now
Product Details

Functions of Automatic Powder Premade Pouch Rotary Packing Machine:

1. The system completes the whole process of feeding, measuring, bagging date printing, charging(onerous), and product out-setting robotically.

2. Wise detection, if the bag is closed or opened incompletely, it will be no longer charged and sealed, and lb avoids wasting bags and materials.

3. The production line of all components in contact with the cloth or packaging bags are used under the meal's hygienic popular of material processing, making sure the health and safety of the food.

Automatic Powder Premade Pouch Rotary Packing Machine

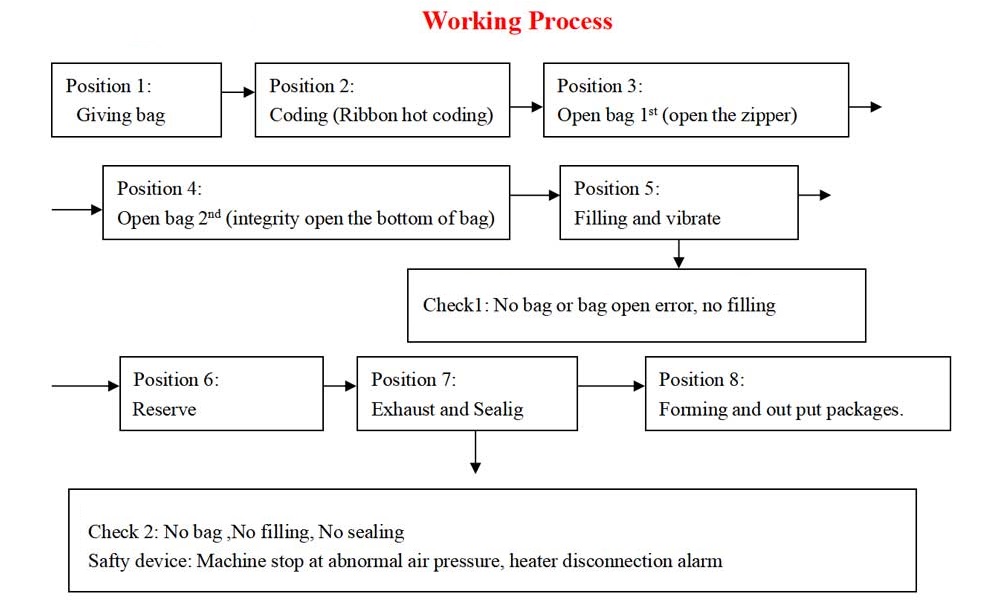

Work process of Automatic Powder Premade Pouch Rotary Packing Machine:

Automatic Powder Premade Pouch Rotary Packing Machine



Application of Automatic Powder Premade Pouch Rotary Packing Machine:

Suitable for packing powder materials, including milk protein powder, cocoa powder, tender sugar, glucose powder, meal components, dyestuff, flavors, fragrances, etc.

Automatic Powder Premade Pouch Rotary Packing Machine



Specification of Automatic Powder Premade Pouch Rotary Packing Machine:

Model

HX-8-200

Line Composition

GQ-8-200 Basic machine, Auger filler, Spiral conveyor

Pouch type

Stand-up bag, flat bag, Quad seal bag

Packing speed

<35Bags/Min (The speed depends on the product status and filing weight

Bag size

W:100-200mm L:100-300mm

Packing weight

10-1000g

Voltage

three-phase380V 50HZ/60HZ

Packing accuracy

<±1

Compressed air consumption

0.6m3/min

Total power

5kw



Packaging and shipping of Automatic Powder Premade Pouch Rotary Packing Machine:

We use the waterproof film multi-layer winding machine and then use wooden boxes for packaging, which can effectively prevent moisture and collision during transportation;

In transportation, we use sea transportation, of course, you can also choose other transportation methods.

After purchase, we will ship it to you as soon as possible. The exact arrival time will vary according to the distance. You can consult online customer service or leave us a message, and we will reply to you in time.

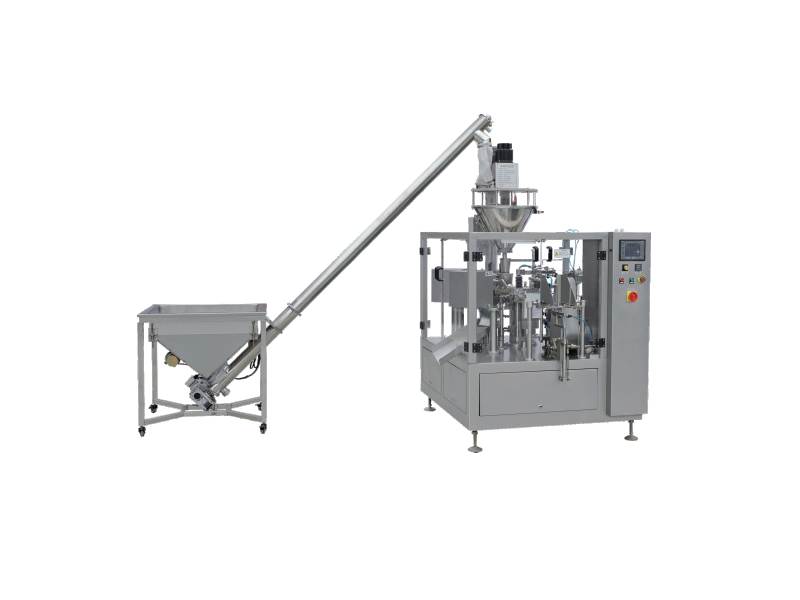

Automatic Powder Premade Pouch Rotary Packing Machine


ModelHX-8-200
Line CompositionGQ-8-200 Basic machine, Auger filler, Spiral conveyor
Pouch typeStand-up bag, flat bag, Quad seal bag
Packing speed<35Bags/Min (The speed depends on the product status and filing weight
Bag sizeW:100-200mm L:100-300mm
Packing weight10-1000g
Voltagethree-phase380V 50HZ/60HZ
Packing accuracy<卤1
Compressed air consumption0.6m3/min
Total power5KW
