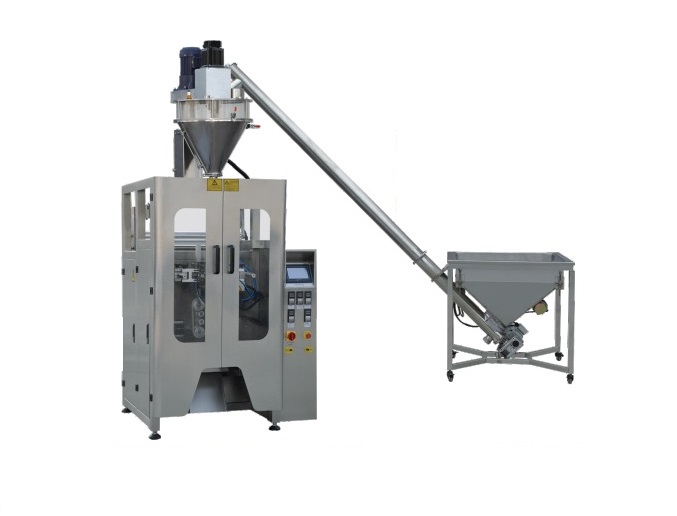

Automatic Powder Quad Seal Packing Machine

Automatic Powder Quad Seal Packing Machine adopts bag type: Quad Seal Bag

  Contact Now
Product Details

Functions of Automatic Powder Quad Seal Packing Machine:

The gadget makes use of rotating screw feeding, an independent material blending gadget, servo coding, and manipulation. providing fast motion, decreased noise, solid operation, rapid dimension, high accuracy, etc.


Automatic Powder Quad Seal Packing Machine



Application of Automatic Powder Quad Seal Packing Machine:

Suitable for automated packaging of free powder merchandise. which includes milk powder, flour, nutrient powder, and many others.



Specifications of Automatic Powder Quad Seal Packing Machine:

Model

HX-520T

HX-720T

Max. film width

500mm

700mm

Bag front width

70-180mm

100-240mm

Bag side width

60-90mm

65-120mm

Side sealing width

5-10mm

5-10mm

Bag length

100-350mm

100-450mm

Packing speed

20-50bag/min

10-30bag/min

Accuracy

<±1-2

<±1-2

Power specification

3.0kw/220V,50/60Hz

3.5kw/220V,50/60Hz

Air consumption

0.7m2/min

0.8m2/min

Overall Dimension

3500x2000x3900mm

3500x2000x4100mm

Gross weight

700Kg

750Kg




Samples of Automatic Powder Quad Seal Packing Machine:

Automatic Powder Quad Seal Packing Machine


Video of Automatic Powder Quad Seal Packing Machine:



Packaging and shipping of Automatic Powder Quad Seal Packing Machine:

We use the waterproof film multi-layer winding machine and then use wooden boxes for packaging, which can effectively prevent moisture and collision during transportation;

In transportation, we use sea transportation, of course, you can also choose other transportation methods.

After purchase, we will ship it to you as soon as possible. The exact arrival time will vary according to the distance. You can consult online customer service or leave us a message, and we will reply to you in time.

ModelHX-520THX-720T
Max. film width500mm700mm
Bag front width70-180mm100-240mm
Bag side width60-90mm65-120mm
Side sealing width5-10mm5-10mm
Bag length100-350mm100-450mm
Packing speed20-50bag/min10-30bag/min
Accuracy<卤1-2<卤1-2
Power specification3.0kw/220V,50/60Hz3.5kw/220V,50/60Hz
Air consumption0.7m2/min0.8m2/min
Overall Dimension3500x2000x3900mm3500x2000x4100mm
Gross weight700Kg750Kg
