Puffy Snacks Food Packing Machine

Puffy Snacks Food Packing Machine is suitable for the packaging of puffed meals, potato chips, potpourri, jelly, sweets, pistachios, peanuts, beans, apple slices, dumplings, dumplings, herbs, and many others.

Product Name: Puffy Snacks Food Packing Machine

Bag width: 200 - 350mm

Bag length: 50 - 450mm

Packing speed: 30-60 bags/min

Power: 3.0kw/3.5kw/4.0kw

Delivery Time: 35 working days.

Payment Term: T/T, L/C, PayPal, Western Union

Contact Now

Product Details

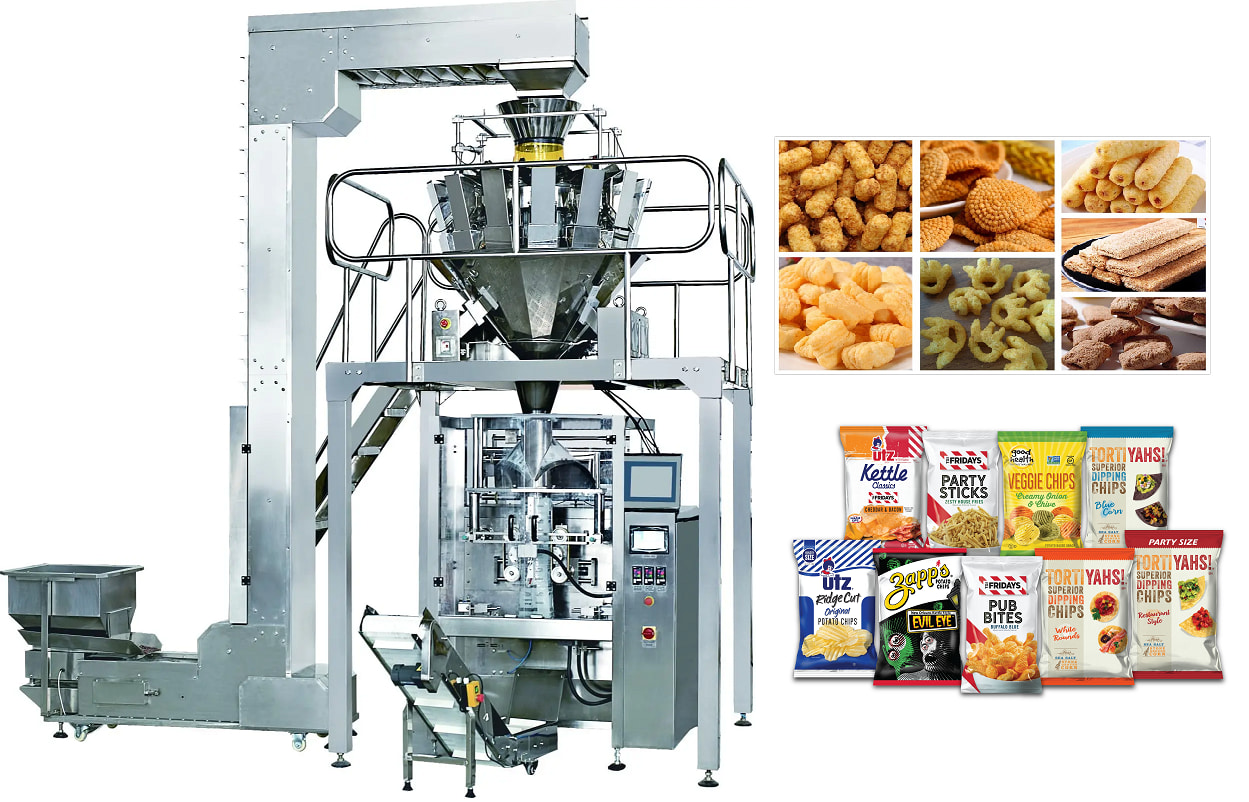

Puffy Snacks Food Packing Machine consists of:

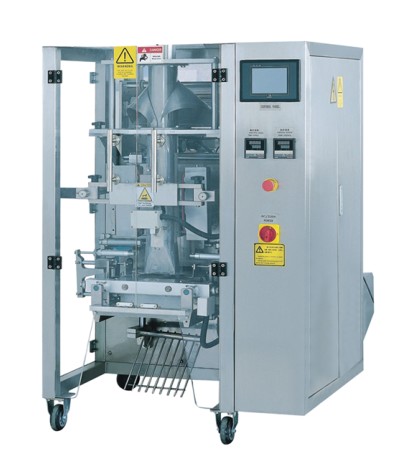

1. Basic packer

2. Ten or fourteen heads combined weigher

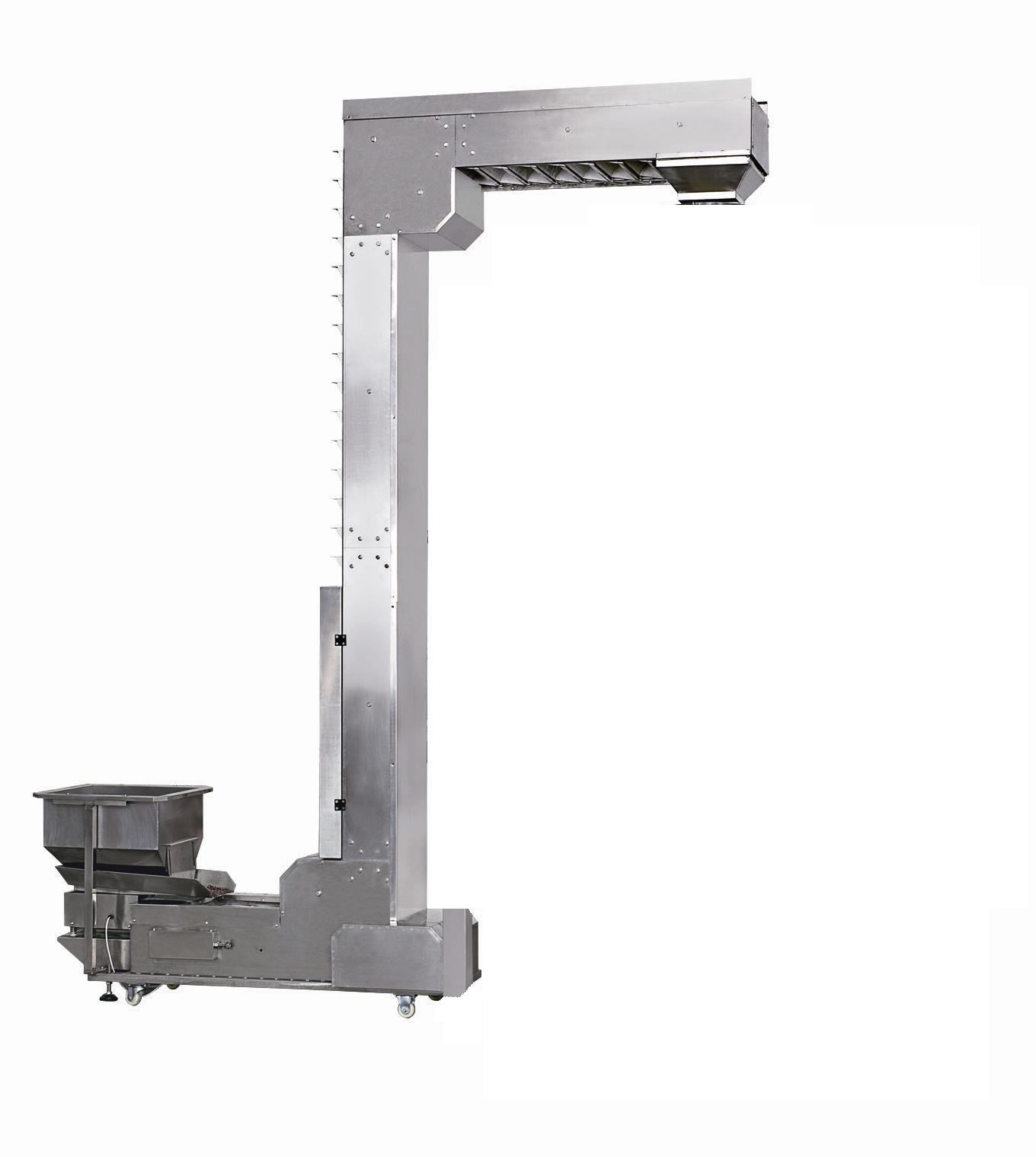

3. Z-type material conveyor

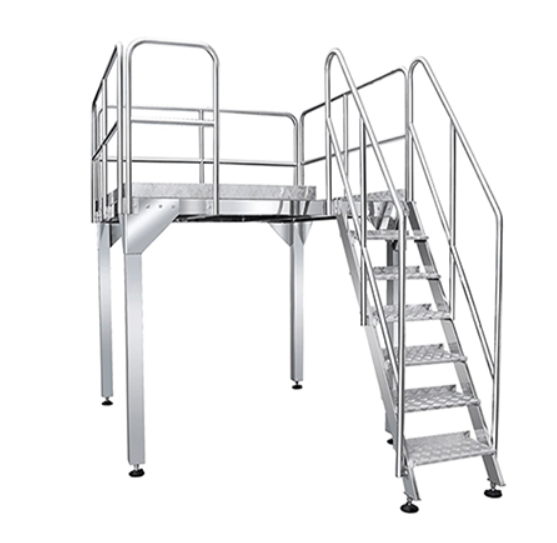

4. Supporting platform

5. Finished product conveyor

Features of Puffy Snacks Food Packing Machine:

1. Imported percent whole pc control gadget, complete Chinese language/English contact show operating tool, in reality, show the jogging fame and operation commands.

2. Excessive precision servo movie shipping tool, easy film delivery, with the photoelectric automated positioning monitoring system, excessive positioning accuracy.

3. Intelligent virtual temperature manipulation machine, strong temperature difference management, with an enamel-long-established sealer to make certain enterprise sealing.

4. Collectively automatic fault alarm show characteristics, along with low temperature, no packaging movie, no ribbon, no fabric, servo fault, no color code signal, and automatic alarm or forestall characteristic even as the glass protection door is opened.

5. The tool can automatically whole the whole packaging way of metering, feeding, bag filling, date printing, and finished product output with the matching of the metering tool.

Puffy Snacks Food Packing Machine

Application of Puffy Snacks Food Packing Machine:

Appropriate for the packaging of bulk gadgets requiring excessive metering accuracy and fragility, along with puffed meals, potato chips, potpourri, jelly, sweet, pistachios, peanuts, beans, apple slices, dumplings, dumplings, herbs, and many others.

Puffy Snacks Food Packing Machine

Specification of Puffy Snacks Food Packing Machine:

Model	HX-420	HX-520	HX-720
Max. bag width	200mm	250mm	350mm
Bag length	50-300mm	80-350mm	100-450mm
Film thickness	0.04-0.08mm	0.04-0.08mm	0.05-0.1 mm
Packing speed	30-60bag/min	30-60bag/min	10-30bag/min
Accuracy	<±1-2	<±1-2	<±2-3
Power specification	3.0kw/220V,50/60Hz	3.5kw/220V,50/60Hz	4.0kw/220V,50/60Hz
Air consumption	0.6m2/min	0.6m2/min	0.7m2/min
Overall dimension	3500x2000x3700mm	3500x2000x3900mm	3500x2000x4100mm
Gross weight	700Kg	750Kg	800Kg

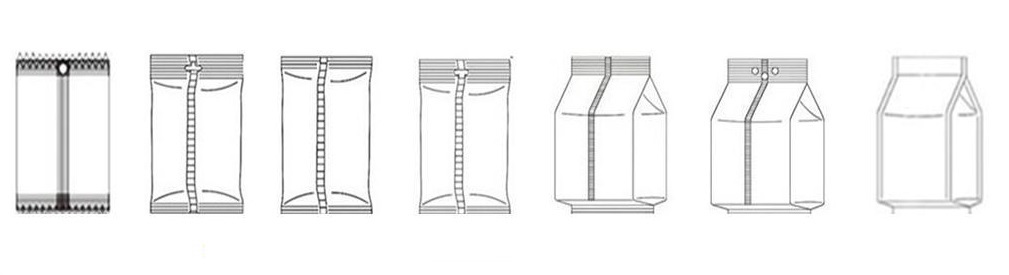

Bag style of Puffy Snacks Food Packing Machine:

Video of Puffy Snacks Food Packing Machine:

Packaging and shipping of Puffy Snacks Food Packing Machine:

We use the waterproof film multi-layer winding machine and then use wooden boxes for packaging, which can effectively prevent moisture and collision during transportation;

In transportation, we use sea transportation, of course, you can also choose other transportation methods.

After purchase, we will ship it to you as soon as possible. The exact arrival time will vary according to the distance. You can consult online customer service or leave us a message, and we will reply to you in time.
