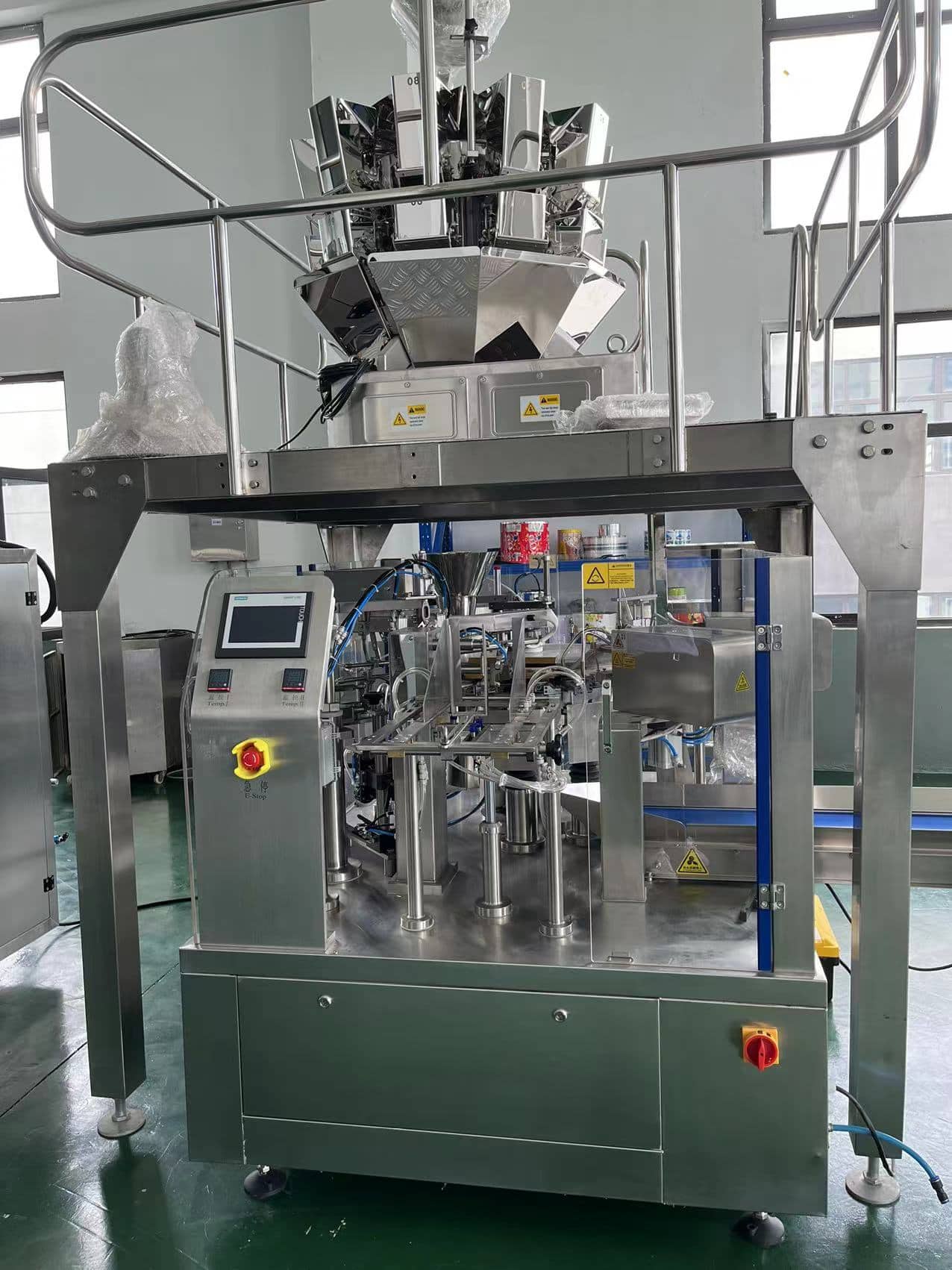

Rotary Premade Pouch Packing Machine

Pouches can be made to order in almost any size and print finish, including matte, glossy, textured finishes and customizable designs including windows.


Packing speed: 40-60 bags/min

Bag size: 100-300mm(Length), 100-200mm(Width)

Packing weight: 50-2000g

Power: 5KW

Pouch type: Pre-made Bag, Stand-up bag, Flat bag, Zipper Bag

Delivery Time: 35 working days.

Payment Term: T/T, L/C, PayPal, Western Union

Packing: Wooden case

  Contact Now
Product Details

Pouch packing involves filling products in hangable or standalone bags. Premade pouches are filled using auger filling machines – or liquid filling machines. Built-in weighing and counting technology make sure all doses are accurate. Choosing the type of machine depends on the product. Dry powders, superfoods, snack foods, nuts, and the like are packed via an auger filler or vibratory weigher. Liquids are packed using a liquid filling machine.


Rotary Premade Pouch Packing Machine


Rotary Premade Pouch Packing Machine



Benefits of Rotary Premade Pouch Packing Machine:

1. Cost-effective and eco-friendly methods for preserving products.

2. Save on space and costs when transporting.

3. up to 30% less material than alternative packing methods, more environmentally friendly.

4. More Popular with consumers due to its resealable function.

5. Free-standing on shelves for increased visibility.

6. More compact and lighter than glass bottles or jars compared with alternative packing methods.

7. Versatile branding options, including colors and printing.

8. Flexible alternative to rigid bottles or cardboard boxes.



Suited products to pouch packing:

Pack a variety of Dry, ambient food solid Granular, powder products, or liquid products.

1. Snack foods like nuts

2. Dry powders

3. Capsules and tablets

4. Herbs and spices

5. Glitter

6. Cooking and baking ingredients


Choose from resealable pouches – Air-tight and resealable pouches keep products fresh – including foods and edible liquids. And the robust plastic material prevents odors from leaking through the packaging, to preserve fragrances.

Stand-up pouches, also known as "Doy packs", or flat pouches without the stand-up bottom. it is often favored because of its freestanding on the shelf.

With a pinch seal on the top of the bag. Then heat seal to the top point of the pouch to supply the tamper evidence pack. or a straight flush seal, heat-sealed for added protection.



Size and finish options of pouch packing:

Pouches can be made to order in almost any size and print finish, including matte, glossy, textured finishes and customizable designs including windows.

Our high-end finish pouches are customizable with branded printing and shop-ready straightly.

With a heat seal at the top of the pouch – to provide tamper – or a ‘euro slot’ for hanging on shop displays.



Standard 8 station work process of Rotary Premade Pouch Packing Machine:

1. Feeding Pouch & Pick Up By Gripper

2. Coding & *Open Zipper

3. Pouch Top & Bottom Open

4. 1st Fill

5. 2nd Fill

6. *3rd Fill or * Pre-Heat Seal

7. Heat Seal

8. Embose Seal & Out Feeding

Rotary Premade Pouch Packing Machine



Specifications of Rotary Premade Pouch Packing Machine:

ModelHX-8-200
Line CompositionBasic machine, Ten heads combination weigher, Supporting platform, Product conveyor, Z-type bucket elevator
Pouch typeStand-up bag, Flat bag, Pre-made Bag, Zipper Bag
Packing speed40-60 Bags/Min (The speed depends on the product status and filing weight)
Bag sizeW:100-200mm L:100-300mm
Packing weight50-2000g
Voltagethree-phase 380V 50HZ/60HZ
Packing accuracy<±1
Compressed air consumption   0.6m3/min
Total power5KW

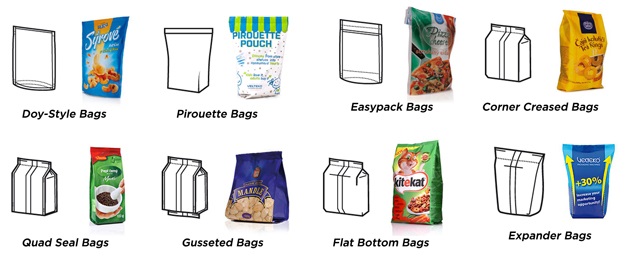

Bag Type of Rotary Premade Pouch Packing Machine:

Rotary Premade Pouch Packing Machine




Packaging and shipping of Rotary Premade Pouch Packing Machine:

We use waterproof film multi-layer winding machine and then use wooden boxes for packaging, which can effectively prevent moisture and collision during transportation;

In transportation, we use sea transportation, of course, you can also choose other transportation methods.

After purchase, we will ship it to you as soon as possible. The exact arrival time will vary according to the distance. You can consult online customer service or leave us a message, and we will reply to you in time.

Rotary Premade Pouch Packing Machine
